FSD-FP Series

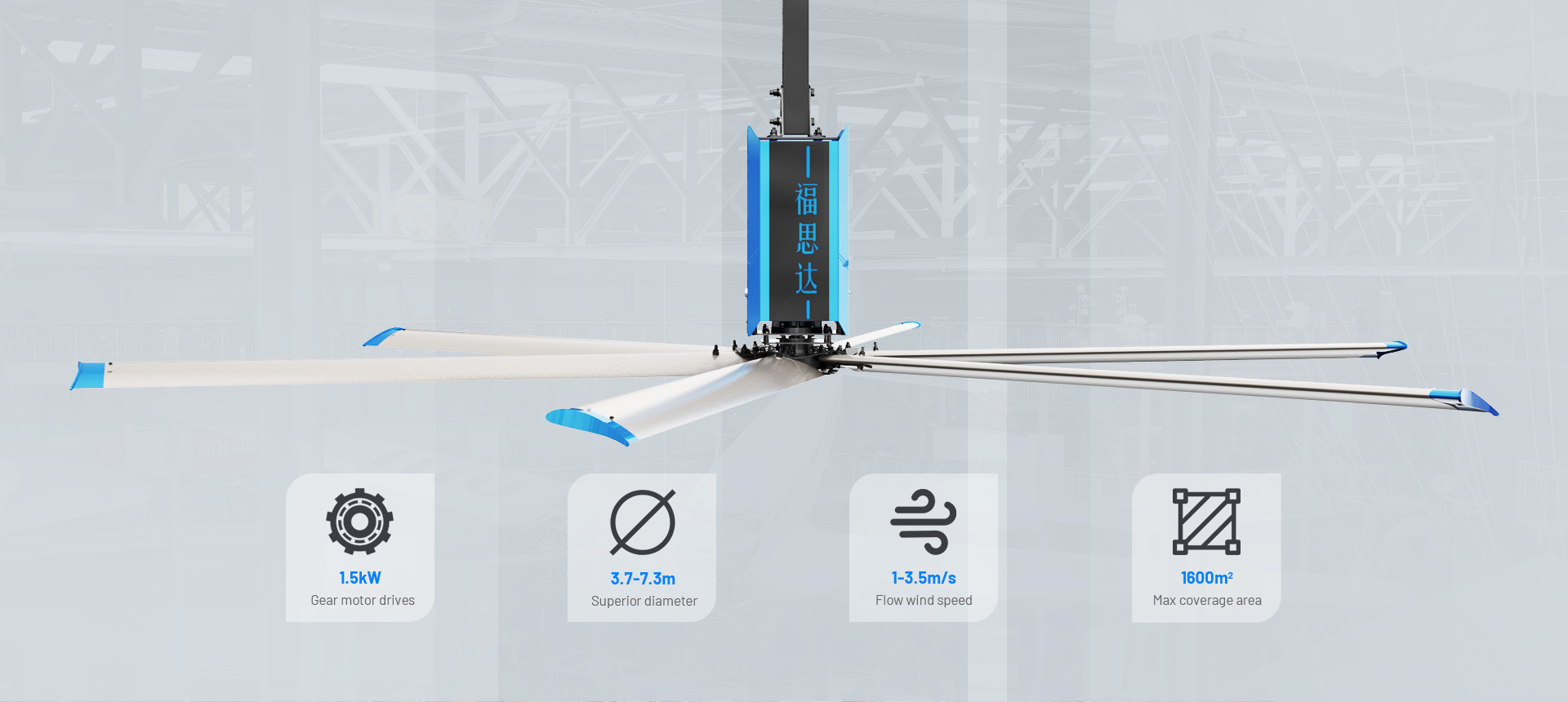

HVLS FANS superior energy saving、high air volume、low rotational speed, fan diameter ranges from 3m to 7.3m;

1.5Kw gear motor drives Airfoil blades, bringing in simulated natural gentle breeze system, accelerating air circulation of big and tall space.

Continuous air flow can be formed in the covered area, and the wind speed can reach 1-4m/s;
Improve the working environment of personnel - body sensing cooling can reach 3-8 ℃, improve work efficiency, improve occupational health and reduce staff turnover rate; A large range of air circulation can also play a dry dehumidification effect, effectively prevent product corrosion, rust, mildew.

应用场景

工业制造
物流仓储
军工制造
畜牧行业
公共场所

免费获取报价

超大直径3-7.3M
风力覆盖面积
800-1600㎡
超级节能
0.4-1.5kw/h能耗
感受自然风吹拂
1-4m/s风速
人体体感降温3-8℃
超长使用寿命10-15年

产品参数

产品型号	FSD-FP73	FSD-FP61	FSD-FP55	FSD-FP49	FSD-FP37
风扇直径(mm)	7300	6100	5500	4900	3700
电机功率(kW)	1.5	1.5	1.5	1.5	1.5
转速(RPM)	0-53	0-53	0-60	0-65	0-70
风量(m³/min)	13900	12100	10200	8600	6000
满载电流(A)	3.20	3.01	2.96	2.95	2.90
理论覆盖范围(㎡)	1600	1400	1300	1200	1000
自重(kg)	135	125	120	115	105
*备注：以上参数仅供参考，具体以厂家沟通确认为准
