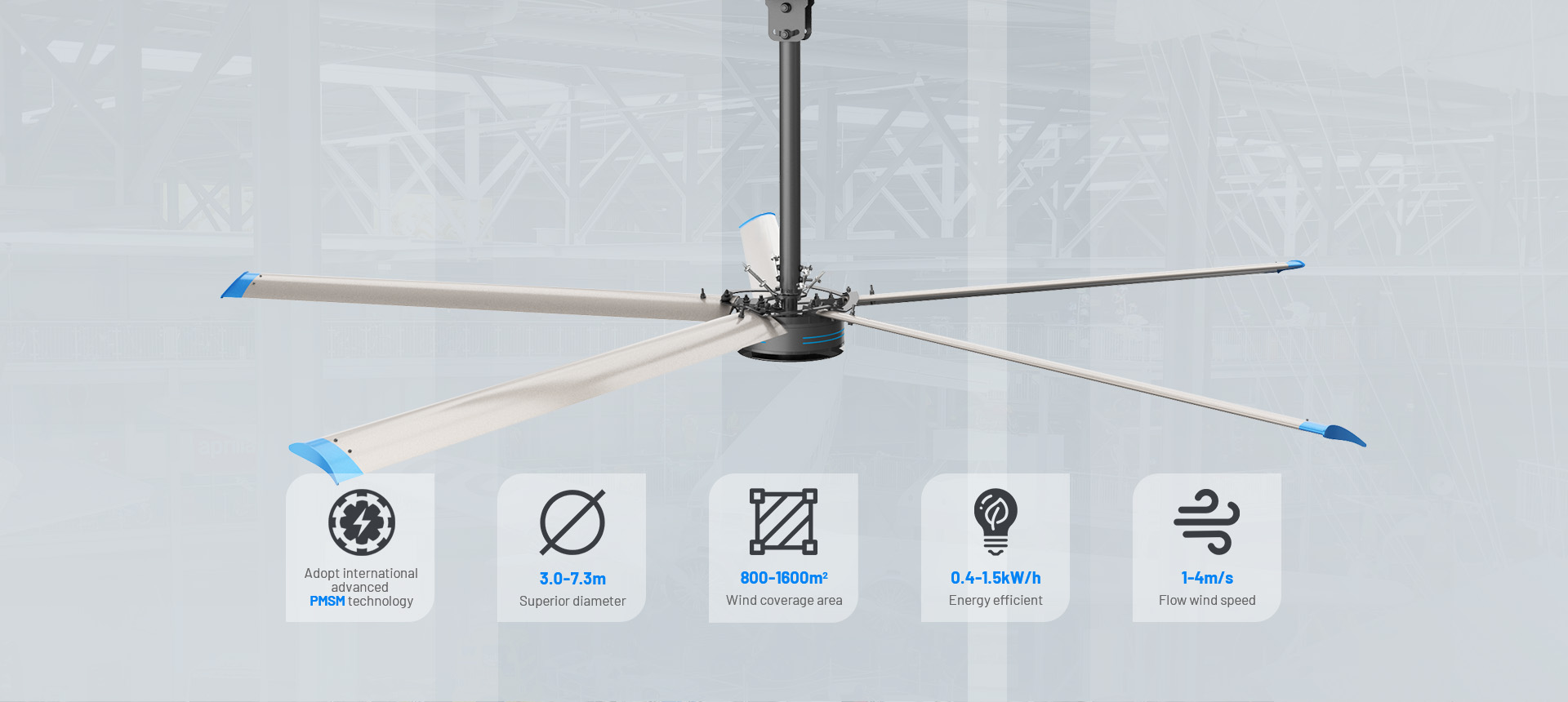

Adopt international advanced PMSM technology, high efficiency、strong power、free maintenance、low noise、energy conservation, fan diameter ranges from 3-7.3m;
PMSM drives Airfoil blade,bringing in simulated natural gentle breeze system, accelerating air circulation of big and tall space.
Continuous air flow can be formed in the covered area, and the wind speed can reach 1-4m/s;
Improve the working environment of personnel - body sensing cooling can reach 3-8 ℃, improve work efficiency, improve occupational health and reduce staff turnover rate; A large range of air circulation can also play a dry dehumidification effect, effectively prevent product corrosion, rust, mildew.
工业制造
物流仓储
军工制造
畜牧行业
公共场所
超大直径3-7.3M
风力覆盖面积
800-1600㎡
超级节能
0.4-1.5kw/h能耗
感受自然风吹拂
1-4m/s风速
人体体感降温3-8℃
超长使用寿命10-15年
| 产品型号 | FSD-FC73 | FSD-FC61 | FSD-FC55 | FSD-FC49 | |
| 风扇直径(mm) | 7300 | 6100 | 5500 | 4900 | |
| 电机功率(kW) | 1.5 | 1.1 | 1.1 | 0.75 | |
| 转速(RPM) | 0-55 | 0-60 | 0-65 | 0-70 | |
| 风量(m³/min) | 15000 | 13200 | 12600 | 9200 | |
| 额定电流(A) | 4.5 | 3.0 | 3.0 | 2.5 | |
| 理论覆盖范围(㎡) | 1600 | 1400 | 1100 | 900 | |
| 自重(kg) | 135 | 120 | 105 | 80 | |
| 噪音(dBA) | ＜40 | ＜40 | ＜40 | ＜40 | |
| *备注：以上参数仅供参考，具体以厂家沟通确认为准 | |||||
PMSM永磁无刷电机
航空级高性能铝合金6063-T6，挤压成型型
高端集成控制器
航空级7075超硬铝合金，高压锻造
220V/380V、50/60HZ
垂直运行空间 ≥0.9m，水平运行空间 ≥5.3m
≥ 4m
H型钢、工字钢、钢混方梁、混凝土、球形网架、角铁、C型钢等
